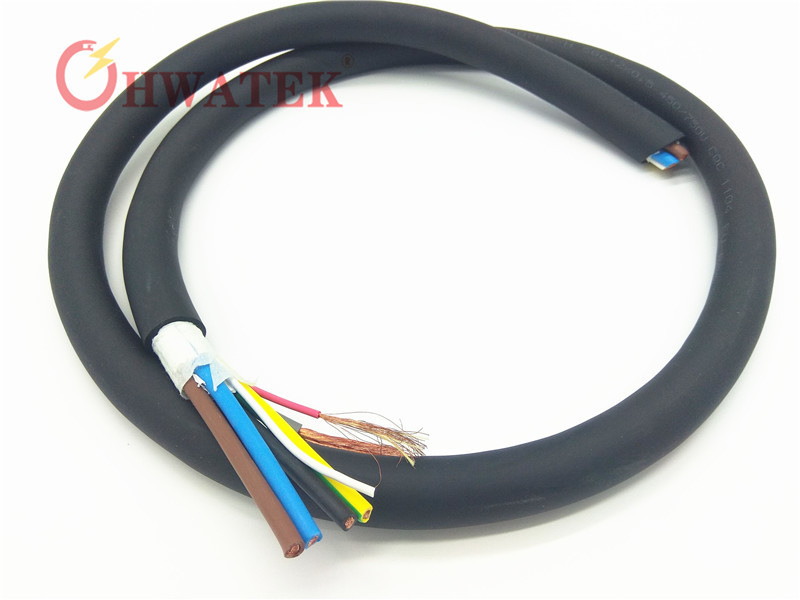

EV Charging Cable H07BZ5 - F 5C X 6mm2 + 2C X 0.75mm2 + W 450/750V EN50620
Product Description
| Construction |
| | A:2.5mm2 | B:0.5mm2 |
| Material | Bare copper stranded | Bare copper stranded |
| Construction | 136/0.15mm | 28/0.15mm+Tinsel+Kevlar |
| Strand Dia. | 2.02mm | 1.15mm |
| Insulation | EVI-2 |
| Nom.Thickness | 0.70mm | 0.40mm |
| Min.Thickness | 0.53mm | 0.33mm |
| Insulation Dia. | 3.70±0.25mm | 2.00±0.10mm |
| Insulation colour | A1.blue A2.yellow/green A3.brown A4.black A5.gray | B.white |
| Filler | PP rope |
| Material | Non-woven |
| Jacket | EVM-1 |
| Nom.Thickness | 1.20mm |
| Min.Thickness | 0.96mm |
| Outer Dia. | 14.00±0.50mm |
| Colour | blue(RAL 5003) |
A:2.5mm2 B:0.5mm2
Conductor Bare copper stranded
Cross section 2.5mm2 0.5mm2 Tensile strength ≥20MPa
Construction 136/0.15mm+Tinsel+ Kevlar 28/0.15mm+Tinsel+ Kevlar
Elongation ≥300%
Strand Dia.(Ref.) 2.02mm 1.15mm
Aged condition 110±1ºC×168h
Insulation EVI-2 Percent of original tensile strength ±30%
Nom.Thickness 0.70mm 0.4mm
Min.Thickness 0.53mm 0.33mm
Insulation Dia. 3.70±0.25mm 2.00±0.10mm
Insulation colour
A1.blue A2.yellow/green A3.brown A4.black A5.gray
Filler PP rope
Assembly 5Cx2.5mm2+1Cx0.5mm2+W
Jacket EVM-1
Reference standard:EN50620-2017
Nom.Thickness 1.2mm
Min.Thickness 0.96mm
Outer Dia. 14±0.5mm
Colour per request
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
