EVE EVT EVJE EVJT UL certified electric vehicle charging cable
UL,CUL
Certification Body:
Underwriters Laboratories (UL)
| File No. | UL Listed, Recognized or Verified Products | UL & cUL Category No. | Product Types |
| E473281 | Electric Vehicle Cable | FFS0,FFS07 | EVE,EVJE EVJT,EVJE |

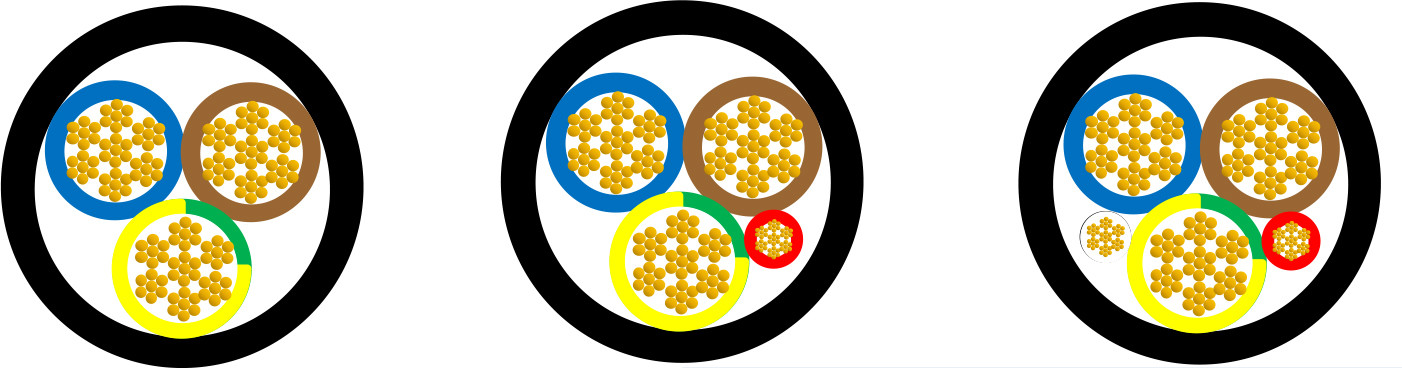

structure diagram:
Reference standard:UL62 CSA C22.2 No.49
Product Category:
EVE / EVT (18AWG-500cmil,＞=2Cores)
EVJE / EVJT (18AWG-12AWG,2-6 Cores)
Construction:
Rated temperature:-40 ~ +105°C
Rated voltage:300V(EVJE,EVJT)
600V(EVE,EVT)
conductor:Stranded bare or tinned copper
Insulation material:TPE/PVC
Sheath material:TPE/PVC
Cold resistance, abrasion resistance, oil resistance, water resistance, UV resistance, pass the VW-1 flame test, excellent resistance to flame propagation.
Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.
Structural parameter table:
| Category | Wire specifications | Reference current (A) | Diameter (mm) |
| UL:EVE,EVT 600V | 3×16AWG | 12 | 10.8 |
| 3×14AWG | 16 | 13.4 |
| 3×12AWG | 23 | 14.2 |
| 3×10AWG | 32 | 16.2 |
| 3×16AWG+1×18AWG | 12 | 11.4 |
| 3×14AWG+1×18AWG | 16 | 13.6 |
| 3×12AWG+1×18AWG | 23 | 14.3 |
| 3×10AWG+1×18AWG | 32 | 15.9 |
| 3×8AWG+1×18AWG | 46 | 21.8 |
| 2×8AWG+10AWG+18AWG | 46 | 20.9 |
| 2×6AWG+8AWG+18AWG | 63 | 23.1 |
| 2×4AWG+6AWG+18AWG | 75 | 26.5 |
| 2×2AWG+4AWG+18AWG | 100 | 30.1 |
| 3×16AWG+2×18AWG | 12 | 12.1 |
| 3×14AWG+2×18AWG | 16 | 13.9 |
| 3×12AWG+2×18AWG | 23 | 15.0 |
| 3×10AWG+2×18AWG | 32 | 16.6 |
| 2×8AWG+10AWG+2×18AWG | 46 | 21.9 |
| 2×6AWG+8AWG+2×18AWG | 63 | 24.8 |
| UL:EVJE,EVJT 300V | 3×16AWG | 12 | 8.2 |
| 3×14AWG | 16 | 9.0 |
| 3×12AWG | 23 | 10.1 |
| 3×16AWG+1×18AWG | 12 | 8.8 |
| 3×14AWG+1×18AWG | 16 | 9.5 |
| 3×12AWG+1×18AWG | 23 | 11.2 |
| 3×16AWG+2×18AWG | 12 | 9.5 |
| 3×14AWG+2×18AWG | 16 | 12.1 |
| 3×12AWG+2×18AWG | 23 | 13.2 |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
Product Tags:
|
|

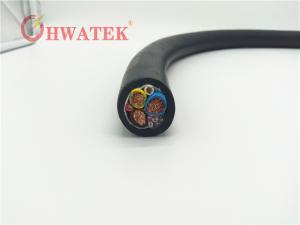

UL Certified EVE EVT EVJE EVJT Electric Car Charging Cable Images
|
