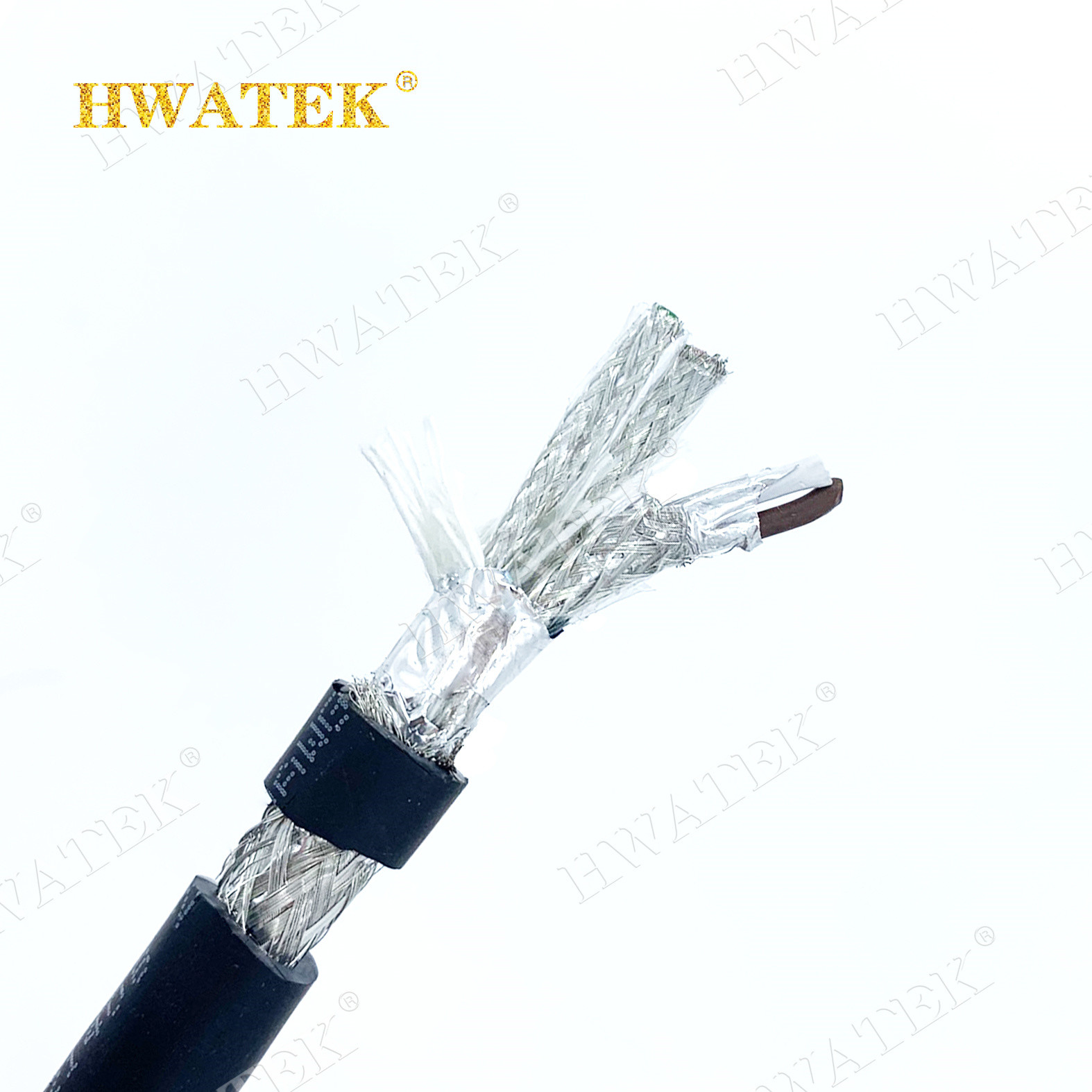

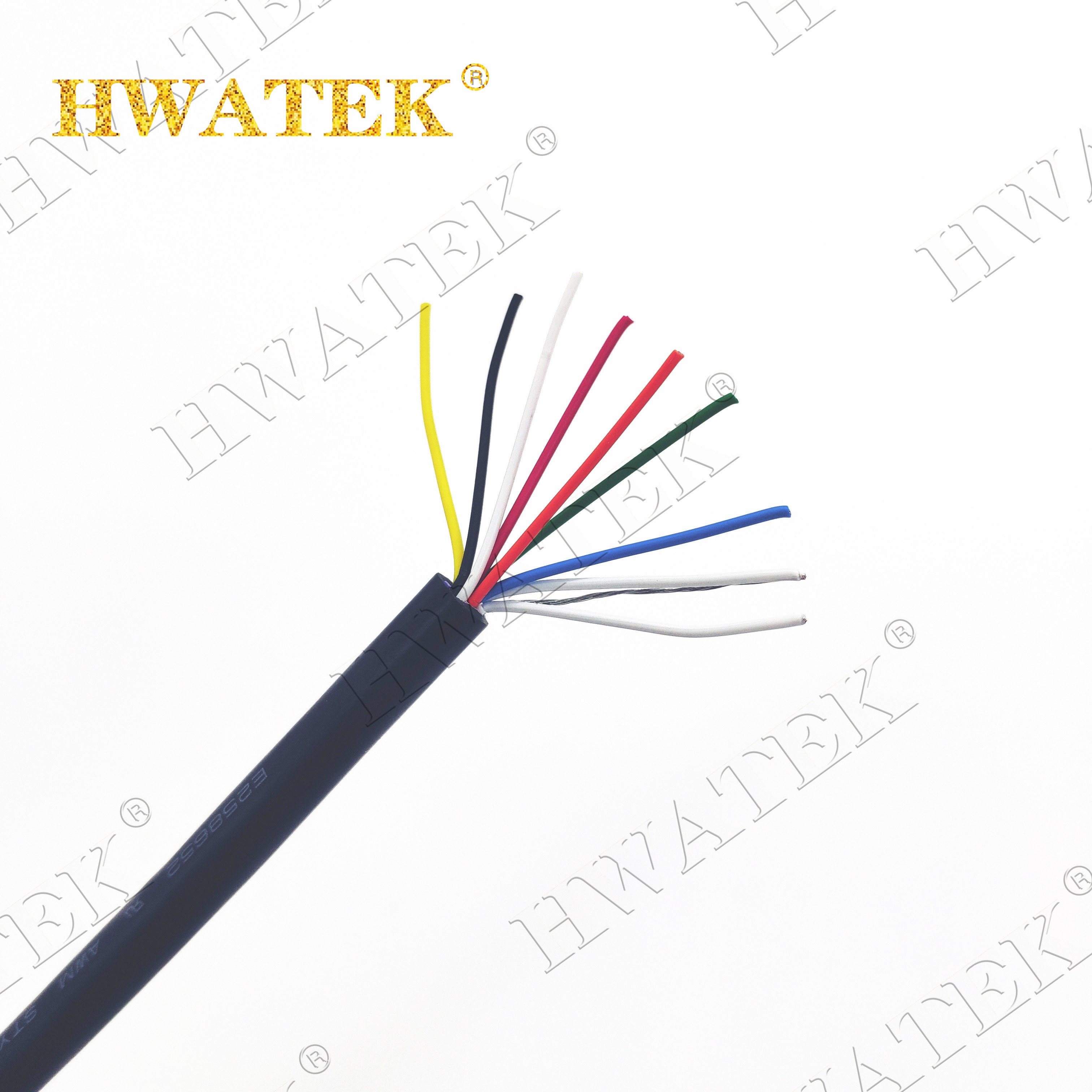

Multi-core , UL20276 28AWG*1P+28AWG*6C+TP+AEB) Braid 100% USB 2.0 COMPLIANT Cable
Product Description
Application:USB 2.0 COMPLIANT WITH 90 OHM IMPEDANCE TWISTED PAIR.
Product character:
1) Nominal voltage: 30V
2) Rated temperature:80℃
3) Conductor: Tinned copper stranded
4) Insulator:PE
5) Operating temperature : 80℃
6) Colours: Insualtion:per request
7) Standard: UL20276
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | A:1P×28AWG | B:6C×28AWG |
| CONDUCTOR | Material | Tinned copper stranded |
| Size | 7/0.127±0.008mm | 7/0.127±0.008mm |
| O.D.(Ref) | 0.38mm | 0.38mm |
| INSULATION | Material | PE | PE |
| Min.average thickness | 0.20mm | 0.20mm |
| Min.thickness at any point | 0.16mm | 0.16mm |
| O.D. | 0.80±0.08mm | 0.80±0.08mm |
| TWISTED | O.D.(Ref) | 1.60mm | / |
| CABLING | Material | Al-mylar(Foil facing out) |
| Assembly | 1P×28AWG+6C×28AWG |
| DRAIN | Material | Tinned copper stranded |
| Size | 7/0.127mm |
| BRAID | Material | Tinned copper |
| Size | 0.10mm(90% min.) |
| JACKET | Material | PVC |
| Min.average thickness | 0.38mm |
| Min.thickness at any point | 0.33mm |
| O.D. | 4.10±0.20mm |
| | | | | | |
Construction
Conductor : stranded, tinned or bare copper
Insulation:PFA
Insulation:per request
Jacket: PET
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
RoHS,REACH Compliant,
Technical data
Rated voltage:60V
Rated Temperature: -40~125℃
Flame: FT2
Voltage withstand test:AC 1.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
