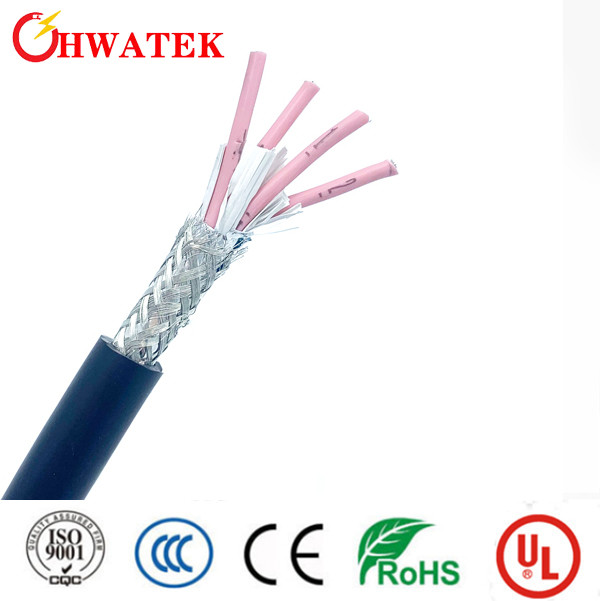

UL2725 AWM2725 5×(1P×30AWG+A)+20C×28AWG+ADB 80℃ 30V Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581
Product character:
Flame rated : FT1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Conductor | | | Tinned copper stranded |
| Cross section | | | A:5×(1P×30AWG+A) | B:20C×28AWG |
| Construction | | | 7/0.10mm | 7/0.127mm |
| Strand Dia. | | | 0.30mm | 0.38mm |
| Insulation | | | Foam PE | PVC |
| Nom.Thickness | | | 0.20mm | 0.23mm |
| Min.Thickness | | | 0.16mm | 0.18mm |
| Insulation Dia. | | | 0.80±0.10mm | 0.85±0.10mm |
| Insulation colour | | | 1.white/black 2.white/brown
3.white/red 4.white/green
5.white/blue | 1. Black 2. Brown 3. Red
4. Orange 5. Yellow 6. Green
7. Blue 8. Purple 9. Gray
10. White 11. Pink 12. Light Green 13. Black/White 14. Brown/White
15. Red/White 16. Orange/White 17. Green/White 18. Blue/White 19. Purple/White 20. Red/Black |
| Twisted | | | 1.60mm(ref.) | / |
| Material | | | Al-mylar(foil face out),≥25% | / |
| Filler | | | Optional |
| Material | | | Al-mylar(foil face out),≥25% |
| Assembly | | | 5×(1P×30AWG+A)+20C×28AWG+A |
| Drain | | | Tinned Copper ,7/0.127mm |
| Braid | | | Tinned copper |
| Size | | | 0.10mm,Min.85% |
| Jacket | | | PVC |
| Nom.Thickness | | | 0.45mm |
| Outer Dia. | | | 8.50±0.30mm |
| Colour | | | GRAY |
Insulation:PVC
Conductor : Tinned copper stranded
Construction
Insulation:1.white/black 2.white/brown
3.white/red 4.white/green
5.white/blue
Jacket : GRAY
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2725
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
